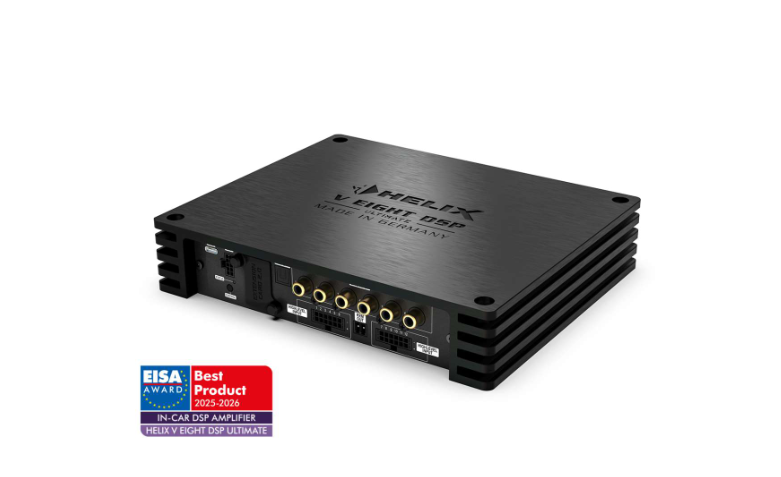

HELIX V EIGHT DSP ULTIMATE

หากสนใจสินค้า สามารถติดต่อเราได้ที่

โทร: 02-125-7669 แอดไลน์เลย: @suchartsound
หมวดหมู่:

รายละเอียดเพิ่มเติม

Features

  • 14 DSP channels for maximum flexibility with multi-channel sound upgrades
  • 8-channel amplifier with latest Class HD concept, which combines excellent sound quality with outstanding efficiency
  • High power 12-channel highlevel input with up to 32 V RMS input sensitivity and ADEP.3 circuit for seamless OEM integration
  • 1:1 IOR (Input-to-Output Routing) – all highlevel inputs can be individually assigned to an amplifier or line output, allowing signal routing directly from input to output
  • Up to 270 W RMS output power per channel into 2 Ω
  • USB PerfectStream technology – lossless high-resolution audio streaming (up to 192 kHz / 32 Bit), AISA measurement (Advanced Input Signal Analyzer), and simultaneous DSP configuration via USB-C
  • Extremely powerful “fixed point” Audio DSP with 64 Bit resolution
  • VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems, thanks to:
    • Cross-channel group equalizers that affect several output channels simultaneously
    • Multi-way speaker configuration of DSP sound effects (SFX)
    • Additional features such as Rear Attenuation
  • ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
  • Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
  • Extension Card 2.0 slot for system add-ons like Bluetooth® HD audio streaming, extra analog inputs, or future signal sources
  • Optical digital input in SPDIF format and six processed line outputs with max. 3 Volts output voltage
  • Stabilized Output Power technology (SOP Max) for consistently stable output power – delivering full performance at all times, regardless of input voltage
  • Intelligent power management ensures perfect voltage stability across all modern vehicle platforms
  • Start-Stop capable power supply with extended input voltage range up to 18 V – ideal for modern EV vehicles
  • Auto Remote switch for amplifier activation without the need for an external remote signal
  • Compact design with low heat dissipation thanks to extraordinary efficiency
  • Maximum control with DSP PC-Tool 6 – professional software for precise amplifier configuration and accurate sound tuning in the vehicle



Technical data

Power RMS  ≤ 1% THD+N
– @ 4 Ohms Channel 1 – 8: 8 x 110 Watts
– @ 2 Ohms Channel 5 – 8: 4 x 220 Watts
– @ 1 Ohm –
– bridged @ 4 Ohms –
– bridged @ 2 Ohms –
Max. output power per channel* Channel 1 – 8: up to 140 Watts RMS @ 4 Ohms
Channel 5 – 8: up to 270 Watts RMS @ 2 Ohms
Amplifier technology Class HD

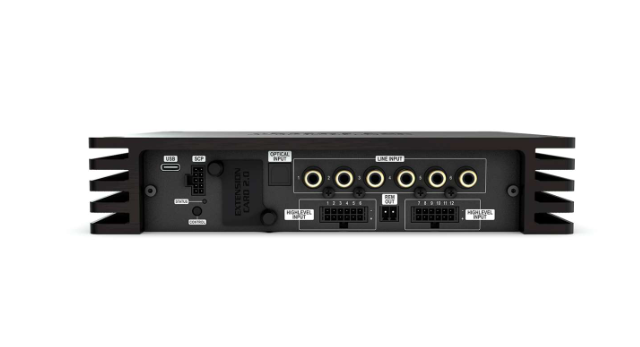

Inputs 6 x RCA / Cinch
12 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Extension Card 2.0
1 x USB PerfectStream
Input sensitivity RCA / Cinch: 1 – 8 Volts
Highlevel: 4 – 32 Volts
Input impedance  RCA / Cinch: 25 kOhms
Highlevel: 9 – 33 Ohms with ADEP.3

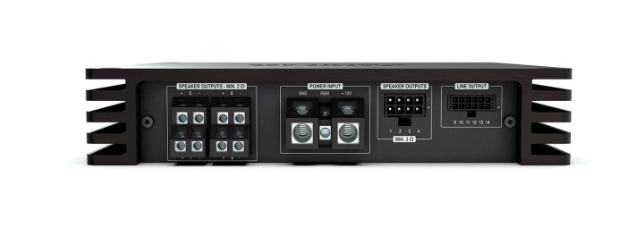

Outputs 8 x Speaker output
6 x RCA / Cinch
2 x Remote Out
Output voltage RCA / Cinch 3 Volts
Frequency response 15 Hz – 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown 24 Bit
D/A: BurrBrown 24 Bit
Signal-to-noise ratio  (A-weighted) Digital input: 107 dB
Analog input: 102 dB
Distortion (THD @ 1 kHz, 1 W into 4 Ohms) < 0.007 %
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) < 0.009 %
Damping factor 100
Operating voltage 10.5 – 18 Volts (max. 5 sec.down to 6 Volts)
Power rating DC 12 V ⎓ 110 A max.
Idle current 750mA
Max. remote output current 500 mA
Operating temperature range -40 °C to +70 °C
Fuse 2 x 40 A LP-Mini-fuse (APS)
Additional features 32 Bit CoProcessor, Extension Card 2.0 slot, ADEP.3 circuit, Auto Remote switch, Smart Control Port, USB-C, USB PerfectStream
Dimensions (H x W x D) 44 x 220 x 180 mm /
1.73 x 8.66 x 7.09”

* In typical multi-channel applications (2- / 3-way system + rear + subwoofer)
